LQ6D31008RED Everis 1/2

#NSSP003171

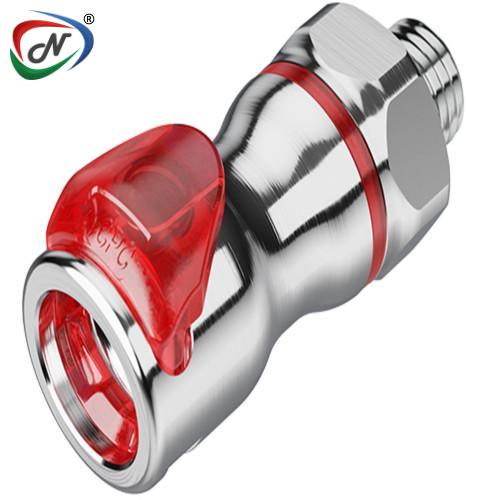

Everis 1/2" G-Thread/BSPP Valved In-line Liquid Cooling Body, Warm Red

Main Features:

Main Benefits:

Disconnect Under Pressure with no Spills
Extra Protection from Leaks over an Extended period of Time.
Efficient, Cost-Effective Cooling System
Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
Instant Visual Identification of Cooling Lines.
Meets size requirements for Space- Constrained Electronics
Compatibility with various tubing options including reinforced tubing.

Main Specifications:

Material: Brass
Material Finish: Chrome
Pressure Range: Vacuum to 120 psi, 8.3 bar
Color: Chrome with warm red
Mounting Option: Thread
Temperature Range: 0°F - 240°F (-17°C - 115°C)
Seal Options: EPDM
Valve Spring: 302 Stainless Steel
Valve Option: Valved
Body Type: Body
Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
Spillage: Spillage is 0.03 cc per disconnect at 0 psi and 0.03 cc per disconnect rated at 120 psi; Inclusion 0.04 cc per connect
Bag Qty: 10
