LQ2D3004BLU 1/8

#NCPC32

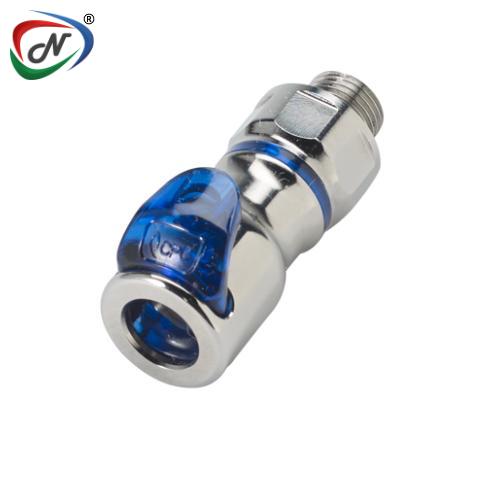

1/8" Everis SAE Valved In-Line Liquid Cooling Coupling Body, Cool Blue

Main Features:

Main Benefits:

Disconnect Under Pressure with no Spills
Extra Protection from Leaks over an Extended period of Time.
Efficient, Cost-Effective Cooling System
Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
Instant Visual Identification of Cooling Lines.
Meets size requirements for Space- Constrained Electronics
Compatibility with various tubing options including reinforced tubing.

Main Specifications:

Material: Brass
Material Finish: Chrome
Pressure Range: Vacuum to 200 psi, 13.8 bar
Color: Chrome with cool blue
Mounting Option: Thread
Temperature Range: 0°F - 240°F (-17°C - 115°C)
Seal Options: EPDM
Valve Spring: Stainless Steel
Valve Option: Valved
Body Type: Body
Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
Spillage: <0.015 cc per disconnect at 0 psi; <0.063 cc per disconnect at 200 psi
Weight: .0772 Ounce
Bag Qty: 10
