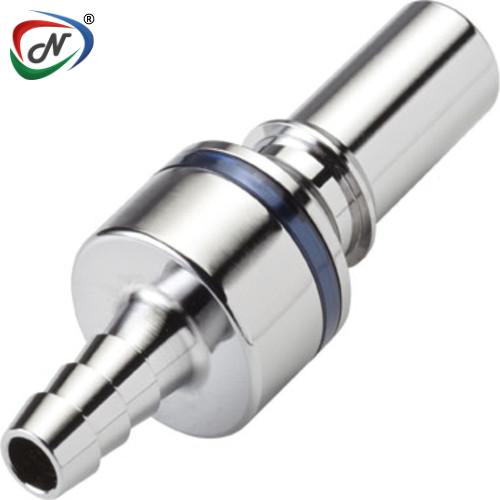

LQ4D22004BLU Everis 1/4 Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

#NCPC62

Everis 1/4 Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

Main Features:

Main Benefits:

Disconnect Under Pressure with no Spills
Extra Protection from Leaks over an Extended period of Time.
Efficient, Cost-Effective Cooling System
Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
Instant Visual Identification of Cooling Lines.
Meets size requirements for Space- Constrained Electronics
Compatibility with various tubing options including reinforced tubing.

Main Specifications:

Material: Brass
Material Finish: Chrome
Pressure Range: Vacuum to 120 psi, 8.3 bar
Color: Chrome with cool blue
Mounting Option: Thread
Temperature Range: 0°F - 240°F (-17°C - 115°C)
Seal Options: EPDM
Valve Spring: Stainless Steel
Valve Option: Valved
Body Type: Insert
Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
Spillage: <0.025 cc per disconnect rated at 0 psi; <0.055 cc per disconnect rated at 120 psi; <0.025 cc per connect
Weight: .0753 Ounce
Bag Qty: 10

MEDICAL (CORE ) & THERMAL INDUSTRY

NESPL Code	NCPC62
Manufacturer Code	LQ4D22004BLU
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
