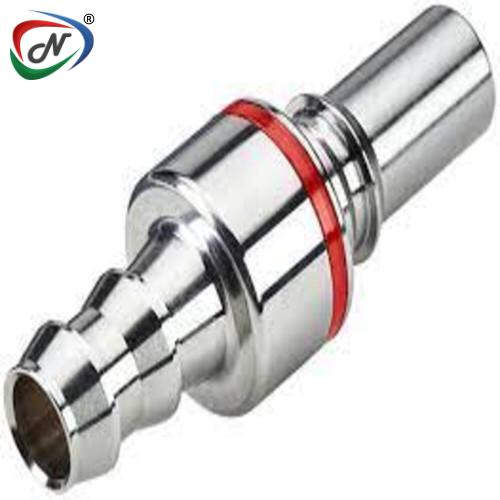

LQ6D22006LRED Everis 3/8" Locking Hose Barb Valved In-Line Insert, Warm Red

#NCPC116

Everis 3/8" Locking Hose Barb Valved In-Line Insert, Warm Red

Main Features:

Main Benefits:

Disconnect Under Pressure with no Spills
Extra Protection from Leaks over an Extended period of Time.
Efficient, Cost-Effective Cooling System
Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
Instant Visual Identification of Cooling Lines.
Meets size requirements for Space- Constrained Electronics
Compatibility with various tubing options including reinforced tubing.

Main Specifications:

Material: Brass
Material Finish: Chrome
Pressure Range: Vacuum to 120 psi, 8.3 bar
Color: Chrome with Warm Red
Mounting Option: In-Line
Temperature Range: 0°F - 240°F ((-17°C) - 115°C)
Seal Options: EPDM
Valve Spring: 302 Stainless Steel
Valve Option: Valved
Body Type: Insert
Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
Spillage: <0.025 cc per disconnect at 0 psi and <0.055 cc per disconnect rated at 120 psi; Inclusion <0.025 cc per connect
Bag Qty: 10
