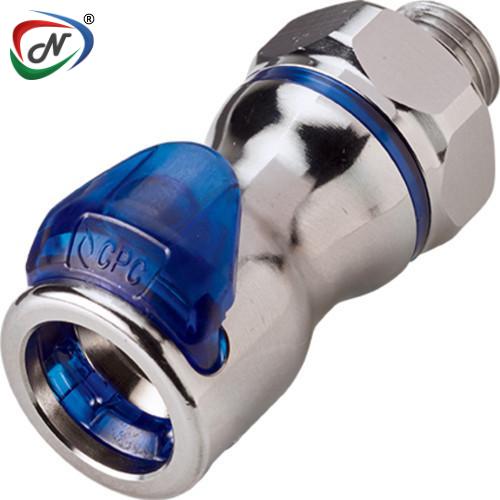

LQ6D30008BLU Everis 1/2" SAE Valved In-Line Liquid Cooling Body, Cool Blue

LQ6D30008BLU

Everis 1/2" SAE Valved In-Line Liquid Cooling Body, Cool Blue

Main Features:

• Non-Spill Design
• Redundant Multi-Lobed Seals
• High Flow Capacity with Low Pressure Drop
• EPDM Or FKM Seals
• Ergonomic Body and Latch Design
• Colour Coding
• Low Profile
• Barbed & Threaded Terminations

Main Benefits:

• Disconnect Under Pressure with no Spills
• Extra Protection from Leaks over an Extended period of Time.
• Efficient, Cost-Effective Cooling System
• Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
• Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
• Instant Visual Identification of Cooling Lines.
• Meets size requirements for Space- Constrained Electronics
• Compatibility with various tubing options including reinforced tubing.

Main Specifications:

• Material: Brass
• Material Finish: Chrome
• Pressure Range: Vacuum to 120 psi, 8.3 bar
• Color: Chrome with cool blue
• Mounting Option: Thread
• Temperature Range: 0°F - 240°F (-17°C - 115°C)
• Seal Options: EPDM
• Valve Spring: 302 Stainless Steel
• Valve Option: Valved
• Body Type: Body
• Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
• Spillage: Spillage is 0.03 cc per disconnect at 0 psi and   0.03 cc per disconnect rated at 120 psi;  Inclusion 0.04 cc per connect
• Weight: .2764 Ounce
• Bag Qty: 10
