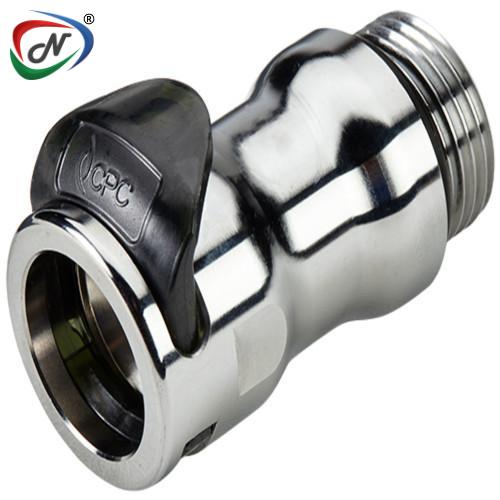

LQ8D31012 Everis G 3/4 (BSPP) Valved In-Line Body Everis LQ8

#NCPC134

Everis G 3/4 (BSPP) Valved In-Line Body Everis LQ8

Main Features:

Main Benefits:

Disconnect Under Pressure with no Spills
Extra Protection from Leaks over an Extended period of Time.
Efficient, Cost-Effective Cooling System
Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water)
Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
Meets size requirements for Space- Constrained Electronics
Compatibility with various tubing options including reinforced tubing.

Main Specifications:

Material: Brass
Material Finish: Chrome
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: In-Line
Temperature Range: 0°F - 240°F ((-17°C) - 115°C)
Seal Options: EPDM
Valve Spring: Stainless Steel
Valve Option: Valved
Body Type: Body
Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
Spillage: <0.033 cc per disconnect at 0 psi, <0.042 cc per disconnect at 30 psi
Weight: .001 Ounce
Bag Qty: 10

MEDICAL (CORE ) & THERMAL INDUSTRY

NESPL Code	NCPC134
Manufacturer Code	LQ8D31012
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
