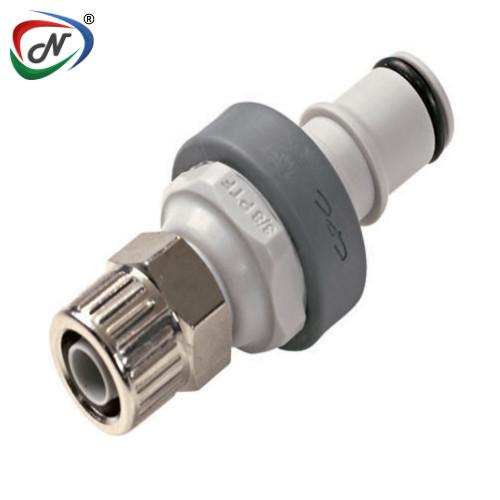

NS4D20006 3/8 PTF Valved In-Line Coupling Insert
#NCPC196
Product Description
NS4D20006
3/8 PTF Valved In-Line Coupling Insert
Main Features:
- Non-Spill Design
- Colour Coding
- Glass -Fitted Polypropylene
Main Benefits:
- Disconnect under pressure with no spills
- Instant visual differentiation of media lines
- Durable & Compatible with many chemicals.
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Gray with dark gray overmold
- Mounting Option: Free Floating
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Spillage: <0.10 cc per disconnect, 0.10cc per connect
- Bag Qty: 25
MEDICAL (CORE ) & THERMAL INDUSTRY
Additional Information
| NESPL Code | NCPC196 |
| Manufacturer Code | NS4D20006 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
