HQC42000 Polypropylene Hybrid Connector, 1/8
#NCPC395
Product Description
HQC42000

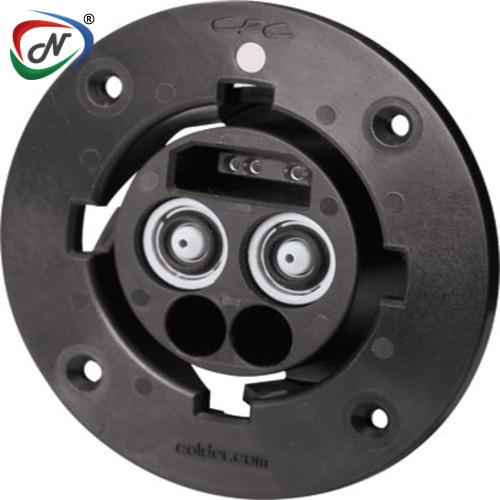

Polypropylene Hybrid Connector, 1/8" ID (3.2mm) Panel Mount
Main Features:
- Easy connection of data, fluid, pneumatic, and power between a device and its tool/handpiece.
- Shutoff valves with dry-break technology.
- Reliable turnkey solution
- Off-the-shelf assembly
- Customization is possible.
Main Benefits:
- Ensures greater safety while improving system usability.
- Minimize fluid leakage upon disconnect and eliminate air inclusions
- Reduces numerous components at the same time
- Minimizes engineering design and manufacturing effort
- Flexibility to add additional fluid connector or elect contacts.
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Black
- Pressure Range: Vacuum to 15 psi, 1.0 bar
- Color: Black
- Mounting Option: Free Floating
- Temperature Range: 40°F - 100°F (4°C - 38°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Other
- Bag Qty: 1
MEDICAL (CORE ) & THERMAL INDUSTRY
Additional Information
| NESPL Code | NCPC395 |
| Manufacturer Code | HQC42000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
