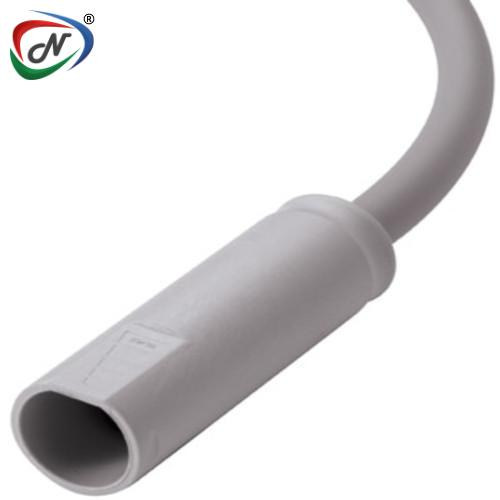

MHQC17000 Hybrid (Mini) Connector
#NCPC396
Product Description
MHQC17000
Hybrid (Mini) Connector, Inline body, 4’ (1.2m) umbilical with 1/16” (3.2mm) ID tube, (2) 22 gauge wires
Main Features:
- Easy connection of data, fluid, pneumatic, and power between a device and its tool/handpiece.
- Easy-to-use breakaway design
- Reliable turnkey solution
- Valve on panel mount side
- Off-the-shelf assembly
- Customization is possible.
Main Benefits:
- Ensures greater safety while improving system usability.
- Quick, automatic disconnect
- Reduces numerous components at the same time
- Prevents loss of pressure upon disconnect
- Minimizes engineering design and manufacturing effort
- Flexibility to add additional fluid connector or elect contacts.
Main Specifications:
- Material: Acetal
- Material Finish: Light grey
- Pressure Range: Vacuum to 25 psi, 1.7 bar
- Color: Gray
- Mounting Option: Free Floating
- Temperature Range: 40°F - 80°F (4°C - 26°C)
- Seal Options: BUNA-N
- Valve Option: Valved
- Body Type: Body
- Bag Qty: 1
MEDICAL (CORE ) & THERMAL INDUSTRY
Additional Information
| NESPL Code | NCPC396 |
| Manufacturer Code | MHQC17000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
