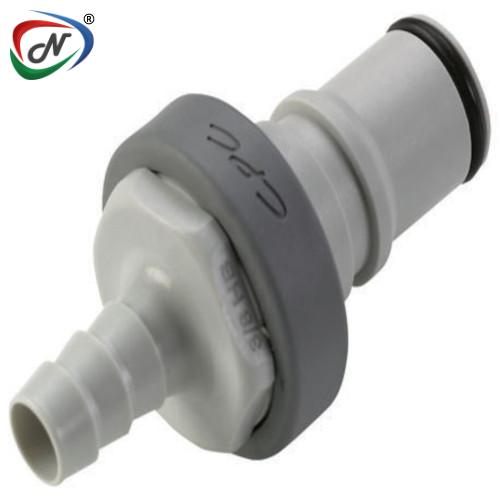

NS4D4200406 1/4 Hose Barb Valved Panel Mount Coupling Insert
#NSSP003123
Product Description
NS4D4200406
1/4 Hose Barb Valved Panel Mount Coupling Insert
Main Features:
- Material: ABS
- Material Finish: Molded White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White with teal overmold
- Mounting Option: Panel Mount
- Sterilization: Gamma
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Spillage: <0.10 cc per disconnect, 0.10cc per connect
- Bag Qty: 25
MEDICAL (CORE ) & THERMAL INDUSTRY
Additional Information
| NESPL Code | NSSP003123 |
| Manufacturer Code | NS4D4200406 |
| HSN Code | 39171010 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
Related Products

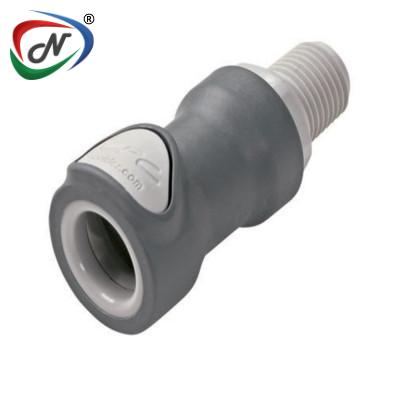

NS4D10004 1/4 NPT Valved Coupling Body
NESPL Code - #NCPC181

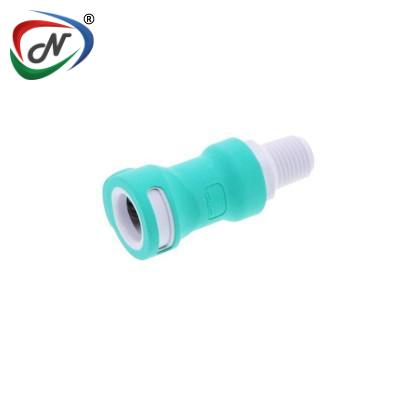

NS4D1000406 1/4 NPT Valved Coupling Body
NESPL Code - #NCPC182
NS4D10004BSPT 1/4 BSPT Valved Coupling Body
NESPL Code - #NSSP003197
NS4D13004 1/4 PTF Valved In-Line Coupling Body
NESPL Code - #NSSP003122

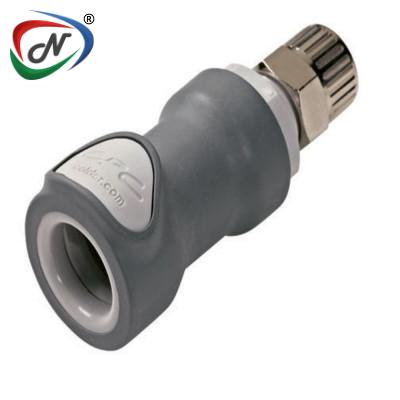

NS4D13006 3/8 PTF Valved In-Line Coupling Body
NESPL Code - #NCPC185

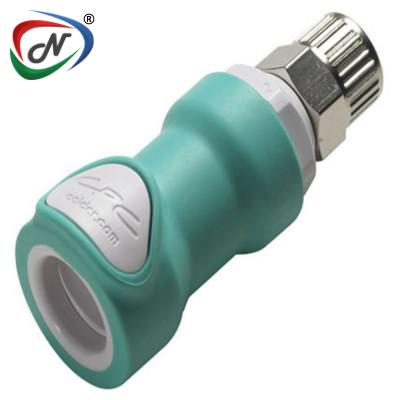

NS4D1300606 3/8 PTF Valved In-Line Coupling Body
NESPL Code - #NCPC186

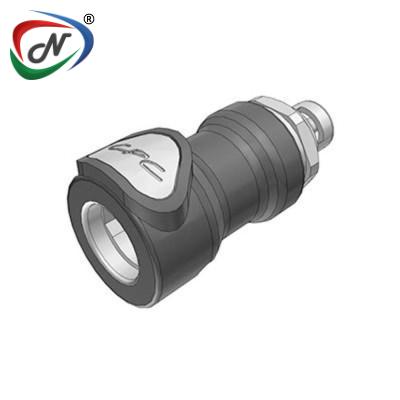

NS4D17002 1/8 Hose Barb Valved In-Line Coupling Body
NESPL Code - #NCPC187

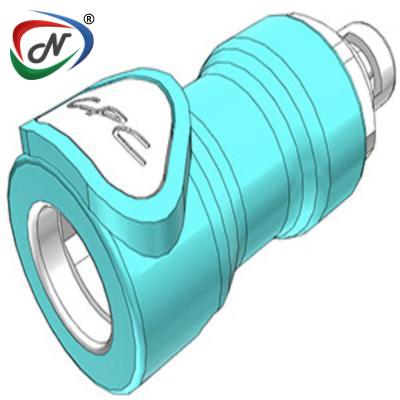

NS4D1700206 1/8 Hose Barb Valved In-Line Coupling Body
