GEAR PUMP DGD04

#NSSP001989

Product Description

DIRECT DRIVE GEAR PUMP- MOTOR UNITS DGD SERIES, FLUID-O-TECH

MAIN APPLICATIONS

WATER PURIFICATION

• LASER COOLING

• SPRAYING

• WATER RECIRCULATION

• CONDENSION REMOVAL

• SYRUP DISPENSING

• VENDING MACHINES

• FOOD PROCESSING

• DIGITAL MACRO PRINTING

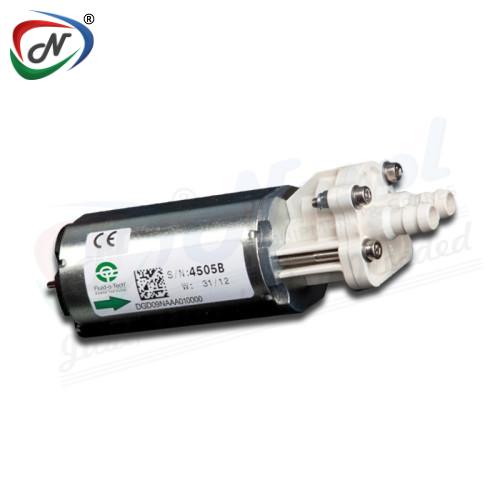

Fluid-o-Tech DGD04 Gear Pump is the gear pump motor designed to facilitate the movement of the viscous fluid with ease. DGD04NAAA010000 gear motor pump is made with direct drive gear pump motor which is based on the magnetic drive MG200 series. This gear pump motor-unit is made to handle the clean, thick, and viscous fluid at the maximum temperature of 70 degrees.

MAIN FEATURES:

EASE FLOW OF VISCOUS FLUID
PRESSURE UPTO 4 BARS (58PSI)
FLOW RATES UPTO 160 I/h (42 GPH)
RPM : 1500
STAINLESS STEEL CASE
VECTRA GEARS
STRAIGHT TEETH DIRECT DRIVE
COMPACT DESIGN
NSF CERTIFIED PUMPS

Click to download : Gear Pump with Direct Drive

Coffee Industry

Additional Information

NESPL Code	NSSP001989
Manufacturer Code	DGD04NAAA010000
HSN Code	84138190
Manufacturer	Fluid-o-Tech
Voltage	24V DC
Model	DGD series
Power	1500 RPM
Weight	0.292 Kg
Type	Pump
