Booster System

#---.

Product Description

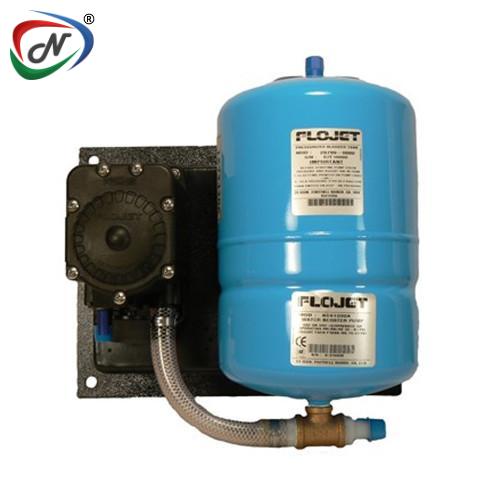

K56 Series Water Booster System Flojet's K56 Series Water Booster Systems are designed for supplying consistent water pressure to beverage dispensers, coffee machines, water filtration systems, carbonators & ice machines. Supplies up to 4 gpm (15 lpm). For use when water requirement is over 1.7 gpm (6.4 lpm). Half-gallon (1.9L) accumulator tank maintains constant flow requirements Capable of CO2 inlet pressures of up to 90 psi (6.2 bar) Ultimate performance and reliability, with extended service life Quiet operation with exhaust muffler Easy installation with all quick disconnect ports Specs :- Power Source CO2 Gas, Nitrogen or Compressed Filtered Air Materials of Construction Polypropylene, Santoprene, EPDM, Nylon, Butyl, AISI 303 & 304 Stainless Steel, Brass Temperature Range 34-120 (Â°F) 1.1-49 (Â°C) Displacement 3.2 oz. per cycle Self Priming Up to 10 ft. (3.05 m) Operating Pressure 60 - 90 (psi ) 4.1 - 6.2 (bar) Max. Liquid Inlet Pressure 30 (psi) 2.1 (bar) Flow Rate 5 (gpm) 18.9 (lpm) Tank Charge Pressure 20 (psi) 1.4 (bar) Dimensions 30.48 x 29.21 x 17.78 (cms) 12 H x 11.5 W x 7 D (inches)

Click to download : K56 Series Water Booster System

Beer Industry

Water Purification

Additional Information

NESPL Code	---.
Manufacturer Code	K56 Series
HSN Code	----
Manufacturer	FLOJET / XYLEM PUMPS
Voltage	N/A
Model	K56-1030A
Power	CO2 Gas, Nitrogen or Compressed Filtered Air
Weight	2.46 (kg) 5.42 (lb)
Type	Pump
