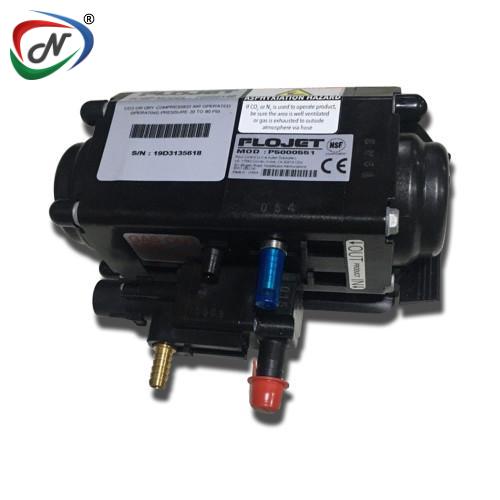

T-5000 FLOJET AIR DRIVEN BIB PUMP

FLOJET BEVERAGE PUMP T5000-140 GAS (C02)/AIR DRIVEN PUMP

• COMPACT DESIGN WITH QUICK DISCONNECTION FITTINGS FOR SIMPLE, QUICK INSTALLATION
• SHUTS OFF AUTOMATICALLY WHEN BAG IS EMPTY AND RESTARTS WHEN BAG IS CONNECTED
• HIGH ALTITUDE SHUT-OFF ALSO AVAILABLE
• FULLY AUTOMATIC, OPERATES ONLY WHEN BEVERAGE IS BEING DISPENSED
• 1/4″ (6.35MM) BARBED, CO2 EXHAUST PORT CONNECTION FOR VENTING AWAY FROM CONFINED AREAS
• MAINTAINS CONSTANT PRESSURE AT THE DISPENSING VALVE
• HIGH SUCTION CAPABILITY EMPTIES SYRUP DOWN TO A MINIMUM RESIDUAL
• RECYCLABLE MATERIALS

MAIN APPLICATIONS:

• DESIGNED FOR DISPENSING BAG-IN-BOX SYRUPS, JUICE CONCENTRATE  (WITHOUT PULP OR PARTICULATES), TEAS, WINES AND LIQUOR
• SUPPLIES THE FOLLOWING FROM REMOTE LOCATION: - FOUR (4) 3.0OZ (89ML) VALVES1 OR - TWO (2) 4.5OZ (133ML) VALVES2

MAIN FEATURES:

•  AIR-OPERATED DIAPHRAGM (DOUBLE) PUMP PROVIDING CHEMICAL RESISTANCE
•  COMPACT DESIGN
•  POSITIVE DISPLACEMENT
•  AUTOMATIC SHUT OFF
•  POWER SOURCE: CO2, NITROGEN, OR COMPRESSED FILTERED AIR
•  POLYPROPYLENE HOUSE WITH STAINLESS STEEL SPRING

MAIN SPECIFICATIONS:

• TEMPERATURE LIMIT: 1.1 DEGREES TO 49 DEGREES CELCIUS
•  OPERATING PRESSURE:  MINIMUM 20 PSI THAT CAN GO UP TO 80 PSI
•  INLET FITTING: â…œ’’
•  OUTLET FITTING: ¼”
•  CO2 GAS FITTING: ¼”
•  HIGH SUCTION CAPABILITY
•  MINIMAL RESIDUE
